PYROGEN is a great self-extinguishing product used by most countries, but in Vietnam it is not widely used. PYROGEN is an aerosol catalyst, capable of extinguishing fire itself.

PYROGEN FIRE PROTECTION SYSTEM

PYROGEN FIRE PROTECTION SYSTEM - Self-extinguishing catalyst, suitable for data centers,


PYROGEN is a great self-extinguishing product used by most countries, but in Vietnam it is not widely used. PYROGEN is an aerosol catalyst, capable of extinguishing fire itself.

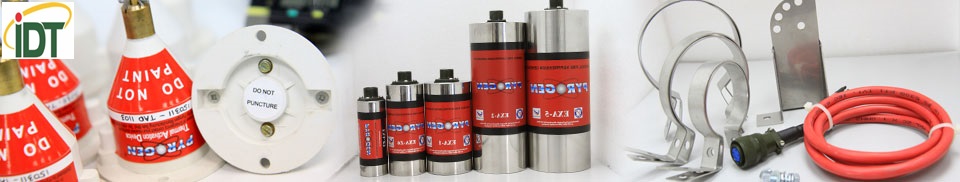

HỆ THỐNG PCCC KHÍ PROGEN



LẮP ĐẶT HỆ THỐNG PCCC KHÍ PYROGEN



Principle of operation

It was originally a solid chemical, contained in a pressure-free box. When activated by heat or electricity, an aerosol with the highest extinguishing properties is generated. This aerosol contains micron-sized particles in suspended form, in a mixture of natural gases with a major component of nitrogen.



After activation, the aforementioned aerosols will quickly enter the protected area, attack the fire both in chemical and physical properties and immediately extinguish the fire within 6 minutes.



Flame compression mechanism: Flame formed by chain reactions through "chain carriers" O, H and OH. PyroGen aerosols produce potassium radicals (K) and allow access to the flame chain reaction of the fire.

K radicals attack O, H and OH chains, removing them from the flame chain reaction while absolutely not affecting oxygen. Therefore the flame will be extinguished by chemical method.



Due to the flame compression structure above, the atmosphere after using PyroGen is still guaranteed, not harmful to health. Items after extinguishing the fire are not damaged like using water or foam bottles.



Depending on each case, use of fire fighting products fire is suitable to economic conditions: in places where there is no precious item, no papers, records, difficult-to-spread fire spreads can be used. Extensive spread of fires can use both water and fire extinguishers simultaneously;



In important places such as record keeping, computer rooms, substations, gas storage tanks, important industrial parks, large cargo ships, export processing zones, garment factories, military warehouses and weapons and ammunition, petroleum depots, even places where conventional firefighting methods cannot be used, so using PyroGen are the best solution.



PyroGen has many types of capacity, from very small, just a bottle of water to a very large vase so it is easy to choose. The price of this product depends on product size; . The chemicals in PyroGen can last for 10 years, so they don”t have to replace fire extinguishers.



For models, to avoid short-bursts, you should install a PyroGen bottle in a place that is easily flammable. If a fire incident happens, PyroGen will automatically detonate, covering the fire in the machine, thus significantly reducing damage to the machine. The recovery time will be fast, without affecting your work.


Step 1: The flame is formed by chains through O, H and OH chain carriers

Step 2: When Pyrogen produces potassium radicals (K) and allow it to enter the flame chain reaction.

Step 3: K radicals attack O.H and OH chains, removing them from the flame chain reaction while completely depleting oxygen.

This is a very superior fire fighting product used in the telecommunications industry and the electricity industry

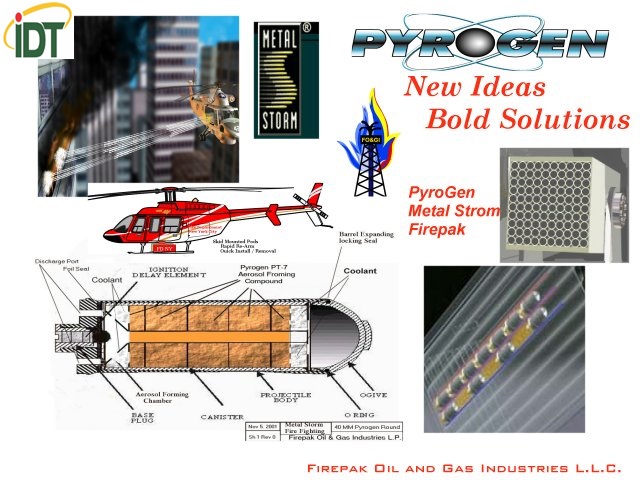

PCCC KHÍ PYROGEN



Effect of Pyrogen:

- 15.5 times more efficient than CO2.

- No storage pressure required

- No need for loose accessories

- No need for piping and pipe work.

- 100% environmentally friendly

- Compact and easy to install.

- And especially this gas does not affect machinery and equipment.
